6. Referringtothe“UsingPush-InFittings”section,insertthebluetubing

comingfromthe1/4”FeedWaterAdapterintotheINLETttingasshown

in Figure 4.

7. Afterinstallingthefaucetasdetailedbelow,insertbluetubingtofaucetinto

OUTLETttings,asshowninFigure4.

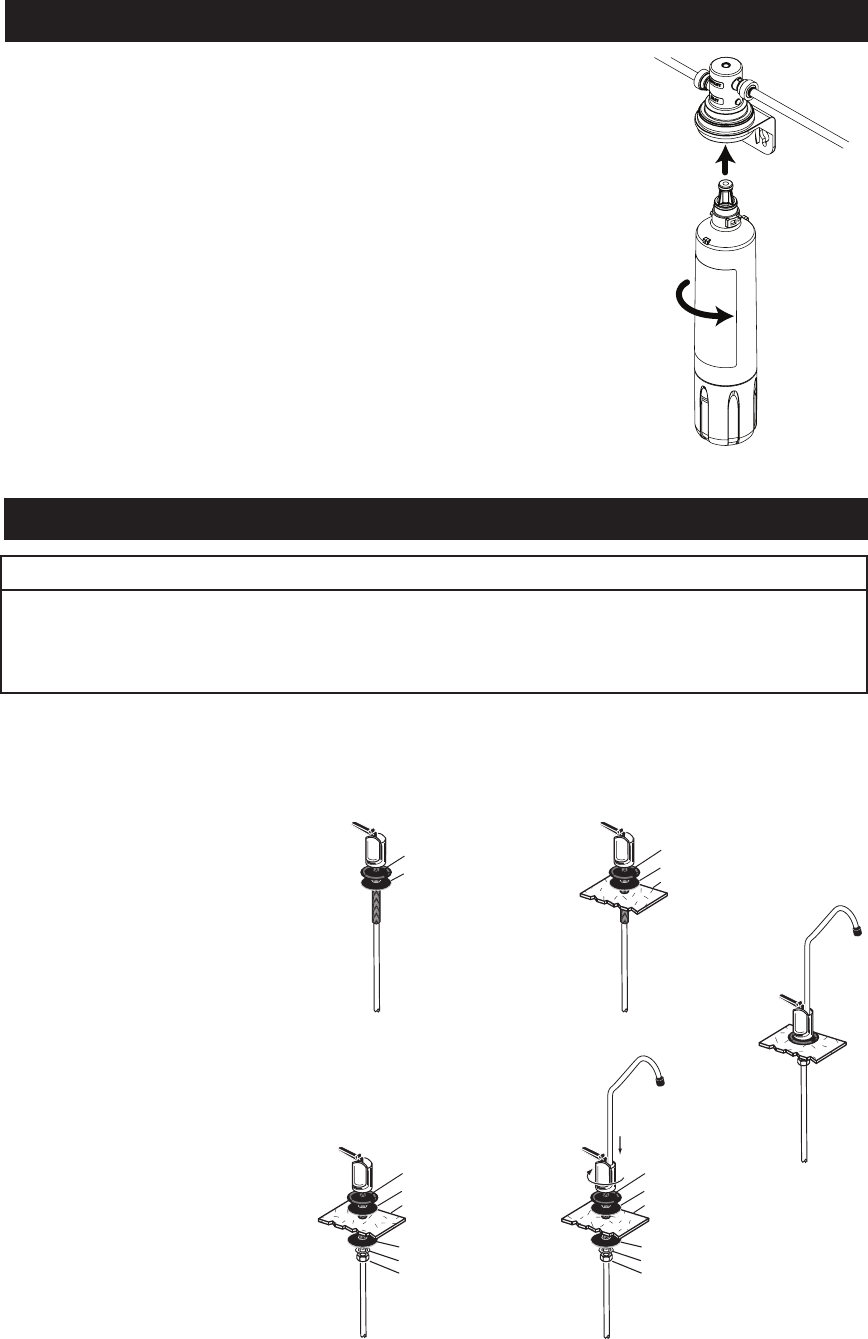

8. Aligntabsofltercartridgewithheadassemblyandinsertltercartridge

intoheadassembly.Turnltercartridgecounterclockwiseuntilitstops

(about1/4turn).Thelterisnowinstalled.(SeeFigure4).

9. Turnwatersupplybackonfromtheshutoffvalveoncoldwaterline.This

willpressurizetheltersystemandbeginsendinglteredwatertothe

faucet.Lookforleaks.If leaks occur, see Troubleshooting Guide. Flush

the ﬁlter for four (4) gallons (approx. 5 minutes) to remove any trapped

air.

INSTALLATION INSTRUCTIONS (CONTINUED)

Drilling 9/16” diameter hole through countertop or stainless steel sink:

1. Locateareatobedrilled.Markcenterofholewithcenterpunch.

2. Drillholewith9/16”drillbitsuitableforcountertopmaterialsorcastiron/stainlesssteel.

3. Withgrindingwheelorle,smoothoutanyroughedges.

Installing the faucet:

1. Slide the following parts in the

orderspeciedupbluetubingand

threaded brass stem:

 a.Plasticbenzel

b. Large rubber washer

2. Next,feedbluetubingandfaucet

stem down through faucet mount-

ing hole.

3. Fromunderneathsink,assemble

theblackspacer,starwasher,

andhexnut(asshown)ontothe

threaded brass stem and tighten

by hand.

4. Withapaddedadjustablewrench,

turnthefaucetbase(abovethe

counter)totherighttosecurely

fasten.Removepieceofplastic

tubing from base.

5. Insertfaucetneckontobaseuntil

seatedandalignoversink.

DRINKING WATER FAUCET INSTALLATION

Plastic Bezel

Rubber Washer

Plastic Bezel

Rubber Washer

Countertop

Plastic Bezel

Rubber Washer

Countertop

Plastic Backing Spacer

Star Washer

Hex Nut

Plastic Bezel

Rubber Washer

Countertop

Plastic Backing Spacer

Star Washer

Hex Nut

4, 5

Installed

Figure 4

Figure 5

• Thedrinkingwatersystemfaucetshouldbelocatedonaatsurface,convenientlylocatednearthesink,sothatit

emptiesintothesink.Mostsinkshavepre-drilledholesdesignatedforsprayers,soapdispensers,andotherac-

cessories.Ifyoursinkdoesnothaveanextrahole,thena9/16”diameterholemustbedrilled.

 • Porcelain,enamel,andceramicsinksrequirespecialproceduresfordrillingholes.See next page for special instructions.

IMPORTANT NOTES
